Digital Substations and the IEC 61850 Standard: The Architecture Behind Today’s Smart Grid

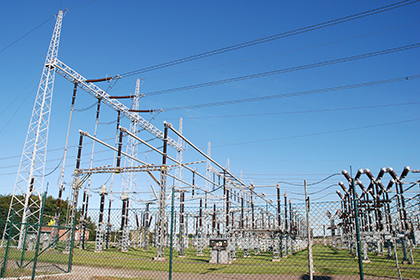

For most of the history of the electric power industry, substations were built around copper. Thousands of meters of control cable ran between instrument transformers, protection relays, circuit breakers, and the control room, each wire carrying a single analog signal to a single device. That architecture worked for a century, but it does not scale to the demands of a modern, renewable-heavy, sensor-dense grid. The digital substation, built on the IEC 61850 communication standard, is the industry’s answer.

What Makes a Substation “Digital”

A digital substation is not simply a substation with computers added to it. The defining change is architectural. Instead of point-to-point analog wiring, a digital substation uses a high-speed fiber-optic network and standardized digital messaging to connect every intelligent electronic device, or IED, on the site. Three technical shifts make this possible.

The first is the use of non-conventional instrument transformers, which digitize voltage and current measurements directly at the source rather than sending raw analog signals down long cable runs. The second is the merging unit, a device that takes those digitized measurements and timestamps them precisely enough that protection and control systems anywhere on the network can use them as if they were local. The third is the IEC 61850 protocol itself, which defines how devices exchange that data over what the standard calls the process bus and the station bus.
